实木板条构件——由榫卯连接方式拼接而成的木材板条组件ce认证标准-ETA认证

EAD 130013-00-0304: 2015

SOLID WOOD SLAB ELEMENT-ELEMENT OF TIMBER BOARDS JOINTED BY DOVETAIL CONNECTIONS TO BE USED AS A STRUCTURAL ELEMENT IN BUILDINGS

实木板条构件——由榫卯连接方式拼接而成的木材板条组件，适用于用作建筑中的结构构件

ab178a8bd47b874bb02db53d9ebae9b7

The solid wood slab element element of timber boards jointed by dovetail connections is made of sawn solid wood boards. The boards are arranged in layers with parallel direction of grain Within one layer the boards are assembled in key and slot. Two or more layers are connected via dovetail connections to archive a greater thickness, see Figure 1 a). A solid wood slab element can consist of minimum 2 and up to 6 layers. Additionally. joists may be added to achieve a higher bending resistance. In combination with joists at least one layer is connected, see Figure 1 b). The dovetail battens connecting the layers and the joists are perpendicular to the board direction.

上海郜盟提示实木板条构件一一由榫卯连接方式拼接而成的木材板条组件一一由锯制而成的实木板条构成。这些板条以纹理方向平行的方式分层排列。同一层内的板条通过榫卯连接方式组装在一起。两层或多层通过榫卯连接方式相连，以增加厚度，如图1a)所示。实木板条构件最少可包含2层，最多可达6层。此外，还可添加搁栅以增强抗弯性能。与搁栅结合时，至少有一层通过连接方式相连，如图1b)所示。连接各层和搁栅的榫卯条垂直于板条方向。

The solid wood slab element is manufactured with a maximum thickness of approximately 360 mm (6 layers of thickness of 60 mm) and a length and width according to the needs.

实木板构件的最大厚度约为360毫米(6层，每层60毫米)，长度和宽度根据需要而定。

The sawn solid wood boards may be finger jointed.

锯切的实木板可以采用指接方式。

Wood species is European spruce (Picea abies), pine (Pinus sylvestris) or Larch (larix decidua) for the sawn solid wood boards and European spruce (Picea abies) or ash (Fraxinus excelsior) for the dovetail battens.

木材种类为用于锯制实木板的原生欧洲云杉(Picea abies)、松树(Pinus sylvestris)或落叶松(Larixdecidua);以及用于制作燕尾搁板的欧洲云杉(Piceaabies)或木 (Fraxinus excelsior)。

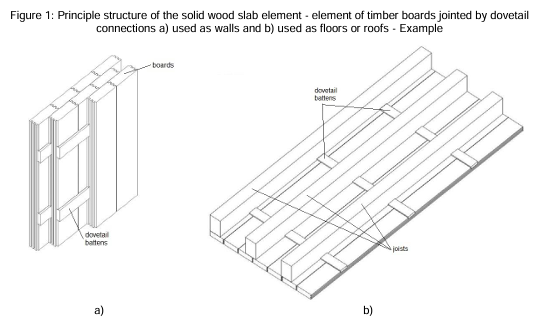

Figure 1 shows the principle structure of the solid wood slab element used as walls and as floors.

图1展示了用作墙体和楼板的实木板材单元的基本结构。

Figure 2 shows examples of the cross section, these examples are not exhaustive.

图2展示了截面示例，这些示例并非详尽无遗。

The surface preparations of the products (planed or grinded, etc.) shall be stated in the ETA.

产品的表面处理(如刨光或打磨等)应在ETA中注明。

The application of wood preservatives and flame retardants is not subject of the European Assessment Document.

木材防腐剂和阻燃剂的使用不在欧洲评估文件范围内。

No recycled wood has been used.

未使用再生木材。

The product is not covered by a harmonised European standard (hEN).

该产品未受统一欧洲标准(hEN)覆盖。

Concering product packaging. transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中予以详细阐述。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

实木板条构件——由榫卯连接方式拼接而成的木材板条组件ce认证法规-ETA认证

实木板条构件——由榫卯连接方式拼接而成的木材板条组件产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

实木板条构件——由榫卯连接方式拼接而成的木材板条组件ce认证模式

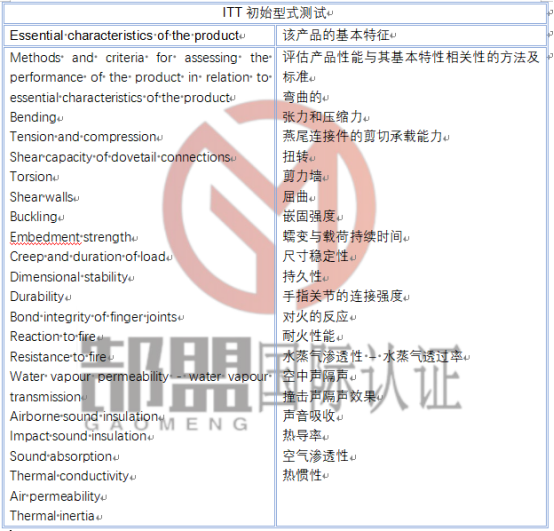

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
