EAD 130019-00-0603: 2016

DOWEL-TYPE FASTENERS WITH RESIN COATING

带树脂涂层的销钉型紧固件

c18459eb-983b-47a1-bf17-f47d0fe4e9c4

The EAD regarding "Dowel-type fasteners with resin coating" covers staples in timber structures.

上海郜盟提示关于“带树脂涂层的销钉型紧固件”的EAD涵盖木材结构中的钉子。

In terms of geometry and materials the staples are in accordance with EN 14592:2008+A1:2012 "Timber structures - Dowel-type fasteners - Requirements" for the following requirements:

在几何结构和材料方面，这些钉扣均符合 EN 14592:2008+A1:2012《木材结构——榫槽式紧固件——要求》中的以下规定：

Staples have legs with a round, deformed circular or rectangular cross-section and will be delivered in loose or collated form.

订书钉具有带有圆形、变形圆形或矩形横截面的脚部，且将以松散或整理好的形式交付。

They are produced from non-alloy steel rods in accordance with EN ISO 16120 or from stainless steel or drawn from austenitic steel rods in accordance with EN 10088.

它们是由非合金钢棒材按照 EN ISO 16120 标准生产而成的，或是由不锈钢材料制成，或是从奥氏体钢棒材经拉制加工而成，具体方式则遵循 EN 10088 标准。

Staples are different to EN 14592 for the following requirements:

订书钉在满足以下要求方面与 EN 14592有所不同:

The tensile strength fu of the raw wire is at least 900 N/mm2.

原线材的抗拉强度 fu 至少为 900 N/mm2。

For staples with rectangular or circular or deformed-circular cross-section the diameter of the staple leg d is at least 1.5 mm and not more than 3,0 mm (d s 2,00 mm for connections of gypsum boards and cement bonded boards). Legs have a minimum cross-sectional area As of 1,7 mm2 and a maximum cross-sectional area of 7.1 mm2, The leg diameter d is taken as d =√4A/Π provided that largest cross-sectional dimension measured about the perimeter is not larger than 1,2 times the value of the smallest dimension.

对于具有矩形或圆形或变形圆形横截面的订书钉而言，订书钉腿的直径 d 至少应为 1.5 毫米，且不超过 3.0 毫米（对于石膏板和水泥粘合板的连接， d s 为 2.00 毫米）。腿部的最小横截面面积 As 应为 1.7 平方毫米，最大横截面面积应为 7.1 平方毫米。若围绕周长测量的最大横截面尺寸不超过最小尺寸值的 1.2 倍，则可将腿直径 d 取为 d = √4A/Π。

The crown has a minimum width b of 5,8 d.

冠部最低宽度 b 为 5.8 d。

In accordance with EN 14592 the maximum length I of the leg is 65 d.

根据 EN 14592 标准，腿部最大长度 I 为 65 d。

If wood fibre insulation material is connected to timber constructions the maximum length I of the leg is 85 d.

若木质纤维隔热材料与木结构相连接，则其脚部最大长度 I 为 85 d。

Staples according to this EAD have a special resin coating for which criteria are determined in clause 2.2.9

根据本EAD，钉子具有特殊树脂涂层，其标准在第2.2.9条款中确定。

The resin coating has a minimum length of 50 % of the legs.

树脂涂层的长度至少为腿长的50%。

The characteristics of staples with resin coating enable its long term and permanent load duration withdrawal capacity.

树脂涂层钉子的特性使其具有长期和永久载荷持续承载能力。

The application of this EAD implies that tests according to clause 2.2.3 and 2.2.4 are obligatory and the conditions of equation (1) to (3) are met.

该EAD的适用意味着根据第2.2.3和2.2.4条款进行测试是强制性的，并且满足公式(1)至(3)的条件。

The product is not fully covered by the following harmonised technical specification EN 14592:2008+A1:2012.

该产品未完全涵盖以下协调技术规范EN14592:2008+A1:2012。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

在产品包装、运输、储存、维护、更换和修理方面，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

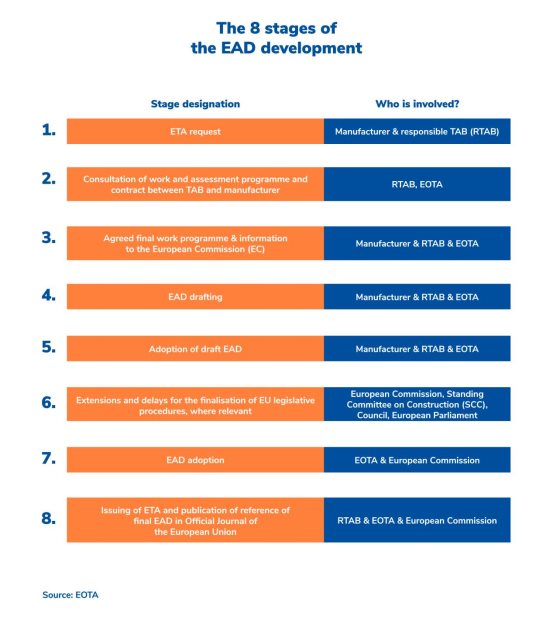

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

带树脂涂层的销钉型紧固件ce认证法规-ETA认证

带树脂涂层的销钉型紧固件产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

带树脂涂层的销钉型紧固件ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
