EAD 130033-00-0603: 2015

NAILS AND SCREWS FOR USE IN NAILING PLATES IN TIMBER STRUCTURES

用于木材结构中钉板的钉子和螺丝

b46688d6-1bc9-4a80-b09d-de1c6ae482a8

This EAD covers the assessment of annular ringed shank nails, square twist nails and screws for use in nailing plates and three dimensional nailing plates in timber structures.

上海郜盟提示本EAD涵盖用于木材结构中板钉和三维板钉的环形带柄钉、方头扭力钉及螺丝的评估。

Type

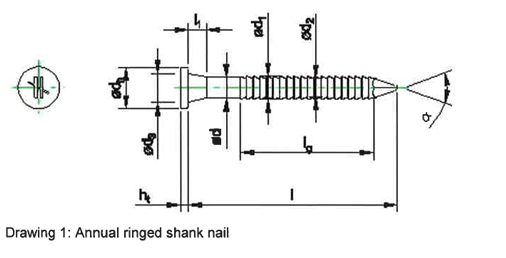

Annular ringed shank nails are shown in Annex A, drawing 1 with a cylindrical shank and with ribs on part of the shank. The shank has a special conical part under the head. The nail head is cylindrical and the tip is pyramid shaped.

类型

环形带环柄钉子如图1所示，位于附件A中，其柄部为圆柱形，且部分柄部带有肋条。柄部下方有一特殊圆锥状结构。钉头为圆柱形，尖端呈金字塔形。

Square twist nails are nails where the shank is squared and twisted as shown in annex A, drawing 2.

方头扭钉是指钉杆呈方形并带有扭曲结构的钉子，如附录A图2所示。

The screws are threaded almost over the total length. The shank just below the head has a cylindrical and a conical part. See annex A, drawing 3.

螺钉在全长上几乎都有螺纹。头部下方的杆部具有圆柱形和锥形部分。参见附录A，图3。

Annular ringed shank nails, square twist nails and screws are made from drawn steel wire.

环形带环钉、方头扭纹钉和螺丝由拉拔钢丝制成。

Range

The dimensions of the nails, d x L, are for d ranging from 2,5 to 6,0 mm and for L ranging from 20 mm to 100 mm.

范围

钉子的尺寸，dxL，适用于d范围从2.5到6.0毫米，L范围从20毫米到100毫米。

The dimensions of the screws, d x L, are for d ranging from 4,0 to 5.0 mm and for L ranging from 25 mm to 80 mm.

螺丝的尺寸，dXL，适用于d范围从4.0到5.0毫米，L范围从25毫米到80毫米。

The product is not fully covered by the harmonised European standard (hEN) 14592

该产品未完全覆盖于欧洲协调标准(hEN)14592中。

The nails and screws covered by the EAD for the particular intended use has a geometry, which is specifically developed for use with three dimensional nailing plates. In addition, the nails and screws covered by the ETAs issued on the basis of this EAD are assessed with three dimensional nailing plates as a kit, in the sense that the ETA for the three dimensional nailing plates gives either load bearing capacities or formulas for the calculation of load bearing capacities, which are based on the assessment of the nails and screws for this particular intended use covered by the EAD in order to obtain the optimum

capacities for the connection.

EAD所涵盖的用于特定指定用途的钉子与螺丝具有特定的几何结构，这一结构专为与三维钉板配合使用而设计。此外，根据此EAD签发的ETAs所涵盖的钉子与螺丝，在以三维钉板为套件进行评估时，其评估结果均以三维钉板ETA为依据，该ETA提供了承载能力或计算承载能力的公式，而这些公式是基于对EAD所涵盖的特定指定用途下所涉及的钉子与螺丝的评估得出的，旨在获得最佳的连接性能。

Hence, the EAD provides the basis for an assessment of the nails and screws for a particular intended use and consequently the capacities indicated in the ETA's for the three dimensional nailing plates are based on the assumption that the nailing plates and nails and screws can be regarded as a kit.

因此，EAD为评估特定预定用途的钉子与螺钉提供了依据，而ET/A中为三维钉板所标示的各项性能则基于这样一种假设:即钉板、钉子与螺钉可被视为一套组件。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

用于木材结构中钉板的钉子和螺丝ce认证法规-ETA认证

用于木材结构中钉板的钉子和螺丝产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于木材结构中钉板的钉子和螺丝ce认证模式

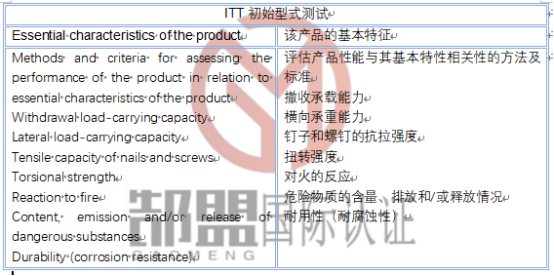

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
