EAD 130089-00-0304: 2017 STRUCTURAL WET AND/OR COLD GLUED FINGER JOINTED SOLID TIMBER 结构用湿法和/或冷粘接指状榫接实心木材

The EAD covers structural finger jointed timber made from one of the following softwood species: Norway spruce (Picea abies, PCAB), Fir (Abies alba, ABAL) and Scots pine redwood (Pinus syivestris, PNSY)graded according to EN 14081-1.

上海郜盟提示EAD 涵盖了由以下几种软木树种制成的结构用指接木材：挪威云杉（Picea abies, PCAB）、冷杉（Abies alba, ABAL）和苏格兰松红栎（Pinus syivestris, PNSY）。这些木材的等级评定依据的是 EN 14081-1 标准。

The structural finger jointed timber consists of only one species throughout. Norway spruce and Fir are considered as one species.

结构指接木材在整个材料中仅包含一种树种。挪威云杉和冷杉被视为同一物种。

One component polyurethane formaldehyde-free adhesives type I according to EN 15497:2014, clause 5.2.3.3 are used to glue the finger joints.

使用符合EN15497:2014标准第5.2.3.3条款的I型单组分无甲醛聚氨酯胶粘剂来粘合指接。

The depth h of the structural finger jointed timber is not less than 30 mm and not more than 40 mm. The width b of the structural finger jointed timber is not less than 50 mm and doesn't exceed 60 mm. The dimensions refer to a moisture content of 20 %. Deviations according to dimensional tolerance class 1 of EN 336 are permitted.

结构指接木材的厚度h不得低于30毫米且不得超过40毫米。结构指接木材的宽度b不得低于50毫米且不超过60毫米。上述尺寸系基于含水量为20%的条件。根据EN336标准中尺寸公差等级1的规定，允许存在偏差。

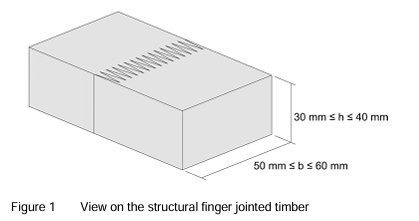

The finger joints are visible on the broadside of timber (see Figure 1).The maximum glue line thickness of the finger joints is 0,1 mm.

指接缝在木材的宽面可见(见图1)。指接缝的最大胶线厚度为0.1毫米。

Structural finger jointed timber treated with fire retardants and the use of recycled materials are not covered by this EAD.

经防火剂处理的结构指接木及使用再生材料的产品不在本EAD范围内。

The product is not fully covered by the following harmonised technical specification: EN 15497:2014

该产品未完全涵盖以下协调技术规范:EN15497:2014。

The structural finger jointed timber fulfills the minimum production provisions according to EN 15497:2014,Annex G, unless otherwise specified in the following.

结构指接木制品符合EN15497:2014附录G规定的最低生产要求，除非下文另有说明。

Deviating from EN 15497 timber members with different moisture contents are used to glue the finger joints.The difference of the moisture content of the timber members may be up to 20 percentage points. The moisture content of the timber members can exceed 18 % but is not higher than 40 %. The minimum moisture content of the timber members is 8 %.

与EN15497标准不符的是，用于胶合指接接头的木材构件具有不同的含水量。木材构件含水量的差异可能高达20个百分点。木材构件的含水量可超过18%，但不得高于40%。木材构件的最低含水量应为8%

Additionally, the timber and air temperature in the production facility and during the curing process can be lower than 15 °C but is not lower than 10 °C. The provisions in the EAD are valid for a maximum timber and air temperature of 30 °C in the production facility and during the curing process

此外，生产设施内及固化过程中的木材和空气温度可能低于15°C，但不得低于10°C。EAD中的规定适用于生产设施内及固化过程中木材和空气温度的最高值为30°C的情况。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(如无此类说明)按建筑专业人士的常规做法进行。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



结构用湿法和/或冷粘接指状榫接实心木材ce认证法规-ETA认证

结构用湿法和/或冷粘接指状榫接实心木材产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



结构用湿法和/或冷粘接指状榫接实心木材ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。







结构用湿法和/或冷粘接指状榫接实心木材ce认证测试哪些项目

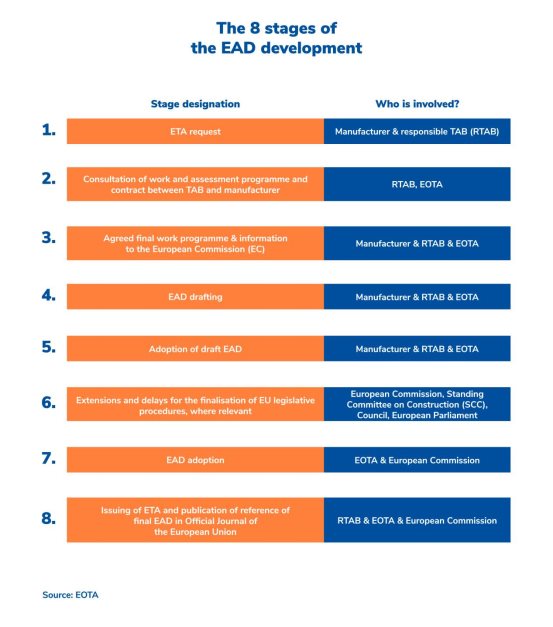

EAD认证流程







结构用湿法和/或冷粘接指状榫接实心木材ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

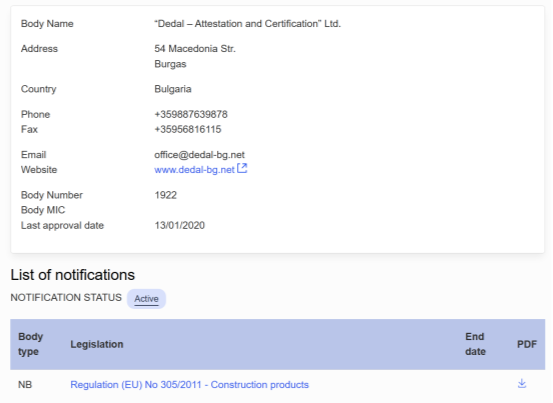

NB1922欧盟官网资质：
