带销钉型紧固件的木混凝土复合板ce认证标准-ETA认证

EAD 130090-00-0303: 2017

WOOD-CONCRETE COMPOSITESLAB WITH DOWEL-TYPE FASTENERS

带销钉型紧固件的木混凝土复合板

a7352648-cfe0-4408-8b8e-dad8b4027b3f

This EAD is applicable to wood-concrete composite slab kits with a maximum span width of 10 m. The kit may contain the following components:

上海郜盟提示本EAD适用于最大跨度宽度为10米的木-混凝土复合板套件。该套件可包含以下组件:

Base materials

-Sawn timber according to EN 14081-1.

-Glued laminated timber according to EN 14080.

-Laminated veneer lumber according to EN 14374.

-Cross laminated timber according to a European Technical Assessment.

The base materials are part of the kit.

基础材料

-根据 EN 14081-1 标准加工的锯制木材。

-根据 EN 14080 标准生产的胶合板木材。

-根据 EN 14374 标准生产的层压贴面木材。

-根据一项欧洲技术评估标准生产的交叉层压木材。

基础材料是该套件的一部分。

Moulding

-Permanent moulding, e.g. at least 12 mm spruce plywood according to EN 13986 and EN 636 for load-bearing applications in exterior use, to be added at site, or boards or other suitable materials. This moulding has no function in the final product. There may be a polyethylene foil above the moulding to prevent leakage of water when the concrete is poured on the construction. In this case, friction between the concrete and timber members cannot be taken into account.

No essential characteristics are assessed for the moulding.

模制

-永久性模制工艺，例如根据 EN 13986 和 EN 636 标准，至少使用 12 毫米厚的云杉胶合板用于承受外部荷载的承重应用场合，此类模制材料需在现场添加，或采用木板或其他合适材料。这种模制工艺在最终产品中并无实际功用。在混凝土浇筑至施工部位时，模制物上方可能覆盖有聚乙烯薄膜以预防水渗漏。在此情况下，混凝土与木质构件之间的摩擦力便无法被考虑在内。

对于该模具而言，并未对其任何关键特性进行评估。

Dowel-type fasteners for shear resistant connection between base materials and the concrete material

-Special screws made of steel, installed under an angle of 45° and/or 90° into the timber members,and

-Steel cylinders according to EN 10217-1 (outer diameter da =45 to 55 mm, min. wall thickness t = 2.6 mm, length L≥80 mm) filled with high-strength cement mortar according to EN 1504-6(filling height hv≥80 to 90 % of L) reinforced by fibre-like steel parts (steel according to EN ISO 16120-2), installed vertically into the timber members by drilling (drilling length IE≥40 mm).

The dowel-type fasteners are part of the kit.

用于在基材与混凝土材料之间进行抗剪切连接的木楔式紧固件

-特制钢制螺丝，以 45° 和/或 90° 的角度安装在木制构件下方

-根据 EN 10217-1 标准制造的钢制圆筒（外直径 da = 45 至 55 mm，最小壁厚 t = 2.6 mm，长度 L ≥ 80 mm），内部填充符合 EN 1504-6 标准的高强度水泥砂浆（填充高度 hv ≥ L 的 80% 至 90%），并通过纤维状钢铁部件（符合 EN ISO 16120-2 标准的钢材）进行加固。这些圆筒被垂直安装于木构件中，通过钻孔方式固定（钻孔长度 IE ≥ 40 mm）。

榫状紧固件是该套件的一部分。

Finalisation of wood-concrete composite slab kit

-Concrete slab cast on site or in a prefabricating plant and reinforced according to standards and regulations in force at the place of use.

The concrete slab is not part of the kit. No characteristics are assessed for the concrete slab.

木-混凝土复合板组件的定稿完成

-混凝土板在现场或预制厂内浇筑，并按使用地现行标准和法规进行加固。

混凝土板并非该套件的一部分。对于混凝土板本身并无任何特性评估。

The characteristics and performances of the components are specified in the ETA according to the above mentioned standards or what is stated in this EAD.

组件的特性和性能在ETA中根据上述标准或本EAD中所述进行规定。

The detailed geometry of the components are defined in the ETA, especially the geometry of the dowel-type fasteners for composite action and their positions in relation to the concrete slab.

组件的详细几何形状在ETA中定义，特别是用于复合作用的销钉型紧固件的几何形状及其相对于混凝土板的位置。

Finished floor or ceiling covering as well as possible sound reducing courses are not part of the kit.

成品地板或天花板覆盖层以及可能的隔音层不属于套件的一部分。

No timber treatments (preservatives, fire and flame retardants) or other dangerous substances are used.

未使用木材处理剂(防腐剂、防火和阻燃剂)或其他危险物质。

This EAD is not applicable when recycled material is used.

当使用回收材料时，本EAD不适用。

The product is not covered by a harmonised European standard (hEN).

该产品不受统一欧洲标准(hEN)的覆盖

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中予以详细阐述。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

带销钉型紧固件的木混凝土复合板ce认证法规-ETA认证

带销钉型紧固件的木混凝土复合板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

带销钉型紧固件的木混凝土复合板ce认证模式

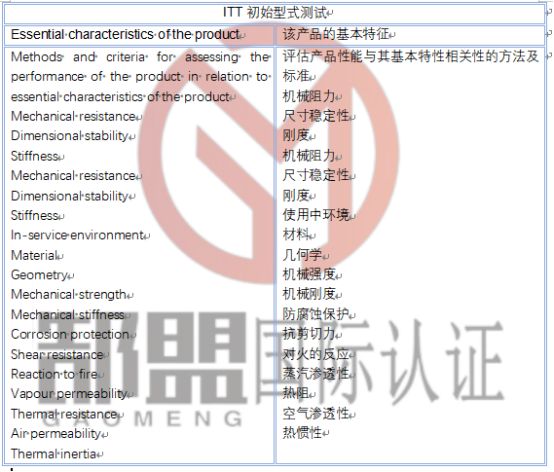

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
