带边角的方形原木(含节疤)ce认证标准-ETA认证

EAD 130167-00-0304: 2016

STRENGTH GRADEDSTRUCTURAL TIMBER-SQUARE EDGED LOGS WITH WANE-SOFTWOOD

强度分级结构木材--带边角的方形原木(含节疤)一软木

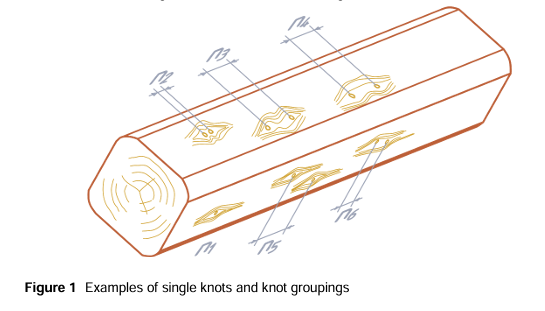

afb64f63-3f8e-49d5-a32e-07532589c156

The product are "Strength graded structural timber - Square edged logs with wane - Softwood" that are full logs of coniferous species, which are edged on four sides maintaining boxed heart and an approximately central pith according to the grading rules of Annex 1.

上海郜盟提示该产品为“强度分级结构木材一一带有渐衰特征的方边原木一一软木”，均为针叶树种的原木，四侧均有边材，保持箱状心材结构，且根据附件1的分级规则，大致保留中央髓心。

The square edged logs with wane are full logs

- visually graded according to Annex 1,

- without preservative treatment,

- without flame retardant and

- exclusively made in virgin wood; no recycled wood is used.

带边角的方形原木是整根原木。

-根据附录1进行目视分级，

-未经防腐处理，

-不含阻燃剂和

-仅使用原生木材制造;不使用再生木材。

Square edged logs with wane do not feature a full square cross section with four sharp arris, but maintain the wane on all four sides along the entire length of the log.

带边角的方头原木并非具有四个锐利棱边的完整正方形横截面，而是沿整个长度在四侧均保留边角。

NOTE The cross sections of the square edged logs with wane are virtually squares,i.e. h ≈ b according to the grading rules of Annex 1.

注:带边材的方头原木横截面几乎为正方形，即根据附录1分级规则h≈b。

Where

h.........Larger side of the cross section, see Anx 1.4.4.1

b.........Smaller side of the cross section, see Anx 1.4.4.1

在哪里

h……剖面中较大的一侧，参见附件 1.4.4.1

b……剖面中较小的一侧，参见附件 1.4.4.1

There are two kind of square edged logs with wane for structural use of softwood,

- with constant external dimensions of the cross section along the entire length;

- with external dimensions of the cross section following the log tapering.

有两种用于软木结构用途的带边角材，一种是外截面尺寸沿全长保持恒定;另一种是外截面尺寸随木材加工过程变化。该产品不受欧洲协调标准(EN)覆盖。

- 全长范围内横截面外尺寸恒定;

- 外部截面尺寸随原木锥度变化。

The product is not covered by a harmonised European standard (hEN).

该产品未被统一的欧洲标准(hEN)覆盖。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的相关规定，这些规定会对产品性能产生影响，相关内容将在ETA中予以详细阐述

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

带边角的方形原木(含节疤)ce认证法规-ETA认证

带边角的方形原木(含节疤)产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

带边角的方形原木(含节疤)ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
