EAD 130186-00-0603: 2018三维钉板CE认证/ETA认证详解-上海郜盟

三维钉板ce认证标准-ETA认证

EAD 130186-00-0603: 2018 THREE-DIMENSIONAL NAILING PLATES 三维钉板

This EAD covers an assessment of preformed three-dimensional metal nailing plates made of steel or aluminium with specified fasteners.

上海郜盟提示本EAD涵盖对由钢或铝制成并带有指定紧固件的预成型三维金属钉板的评估。

The specified fasteners include for example nails, screws, bolts, pins and dowels.

指定的紧固件包括例如钉子、螺丝、螺栓、销和榫头。

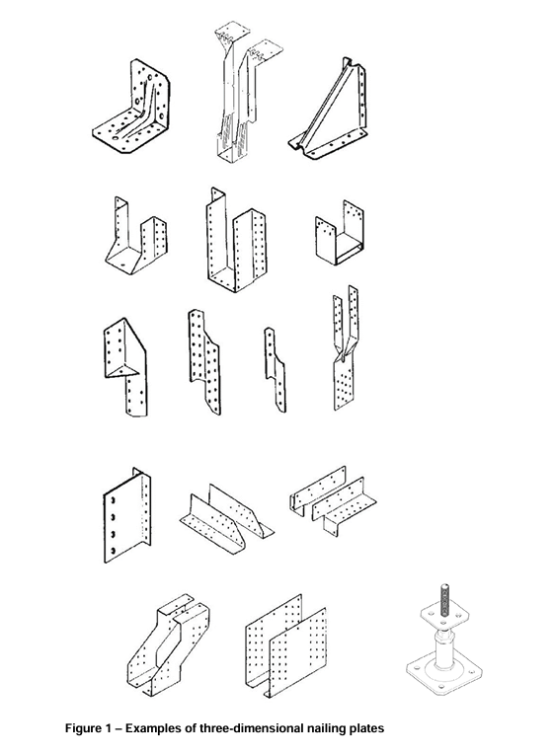

This EAD is intended to cover all types of three-dimensional nailing plates, a non-exhaustive list of examples of which are given in Figure 1 and possible configurations are given in Figure 2.

本EAD旨在涵盖所有类型的三维钉板，其示例非详尽列表见图1，可能的配置见图2。

The EAD does not cover:

·Products covered by Mandate M112 to CEN for 'Structural timber products and ancillaries

·Joist hangers covered by Mandate M116 to CEN for 'Masonry and related products' (as 'ancillary components),

·Use of three-dimensional nailing plates in pile foundations.

EAD不涵盖:

·受CENM112指令涵盖的“结构木材产品及配件"产品。

·由CENM116指令涵盖的用于“砌体及相关产品”的桁架吊件(作为‘辅助构件’)，

·在桩基础中使用三维钉板。

The EAD cover the assessment of a product consisting of the three-dimensional nailing plate and specified fasteners. Both the three-dimensional nailing plates and the fasteners are specified in the ETA.It is possible that the fasteners included in the kit are not produced by the ETA holder. If the fasteners are already CE marked, it is not necessary to test the fasteners themselves again in connection with this EAD.

EAD涵盖了对包含三维钉板及指定紧固件的产品进行评估的内容。三维钉板和紧固件均在ETA中有所规定。有可能该套件中所包含的紧固件并非由ETA持有者生产。如果这些紧固件已带有CE标志，则无需针对此EAD再次对紧固件本身进行测试。

The products are not covered by a harmonized standard (hEN).

这些产品不受统一标准(hEN)的覆盖。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(若无此类说明)根据建筑专业人士通常的做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



三维钉板ce认证法规-ETA认证

三维钉板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



三维钉板ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。







三维钉板ce认证测试哪些项目

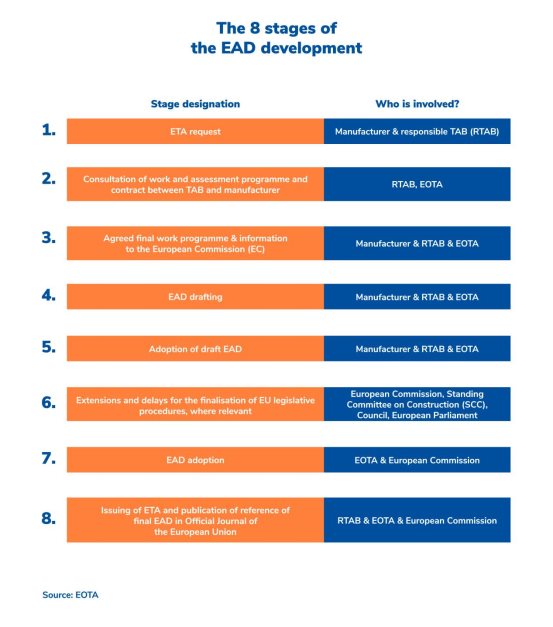

EAD认证流程







三维钉板ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

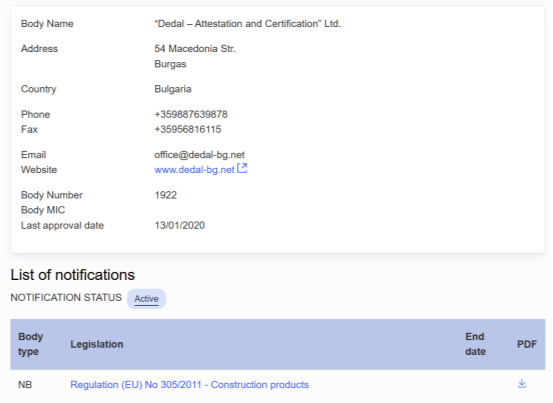

NB1922欧盟官网资质：
