PREFABRICATED WOOD SLAB ELEMENT MADE OF JOINTED CROSS LAMINATED LOG ELEMENTS TO BE USED AS A STRUCTURAL ELEMENT IN BUILDINGS

由拼接交叉层压原木构件制成的预制木板单元，用作建筑中的结构元件

This EAD deals with prefabricated wood slab elements composed of minimum two cross laminated logs.The cross laminated logs are made of two outer lamellas of solid wood, finger jointed according to EN 15497, and an inner layer of a single-layer solid wood panel, which may be butt jointed, arranged perpendicular to each other and bonded together by gluing. Hereby, the grain direction of the outer lamellas is arranged in the direction of mechanical action. For the lateral connection of the laminated logs tongue and groove joints are arranged and additionally bonded together by gluing. The number of tongues and grooves is the same for every height. No load-bearing function is assigned to the lateral connection. The dimensions of the lateral tongue and groove connection shall be given in the ETA.

上海郜盟提示本EAD涉及由至少两种交叉层压原木构成的预制木板构件。这些交叉层压原木由两层外薄片(均为实木材质)、按照EN15497标准进行指接拼接而成，以及一层单层实木面板的内层构成。内层实木面板可能采用对接方式，垂直排列，并通过胶合方式相互连接。如此一来，外薄片的纹理方向便顺应了机械作用的方向。此外，层压原木的榫槽连接结构得到布置，并通过胶合方式进一步进行加固。每种高度上的舌片和槽沟的数量均保持一致。横向连接不具备承重功能。横向舌片与槽沟连接的尺寸应在ETA中予以说明。

Timber species is European spruce, pine or larch.

木材种类为欧洲云杉、松木或落叶松。

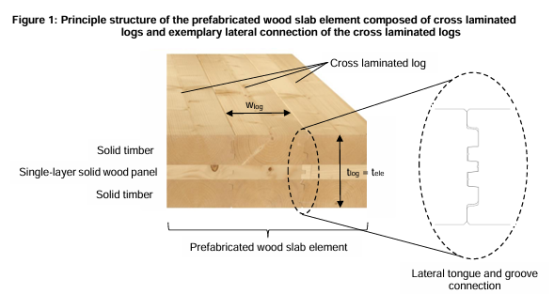

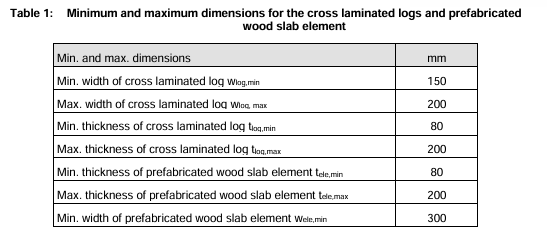

The overall shape of the prefabricated wood slab element as well as the lateral connection of the cross laminated logs are shown in Figure 1. Minimum and maximum dimensions for the cross laminated logs and prefabricated wood slab elements are given in Table 1.

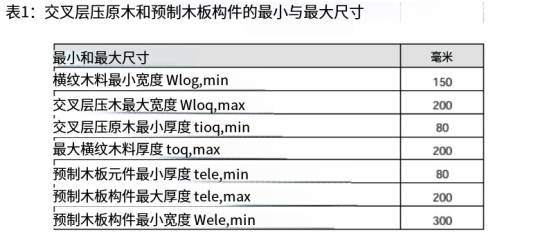

预制木板构件的整体形状以及交叉层合原木的横向连接情况如图1所示。交叉层合原木和预制木板构件的最低和最高尺寸见表1。

The following structural adhesives are used for surface bonding, finger joints as well as the lateral connection of the cross laminated logs:

-Adhesives type I according to EN 301

-Adhesives type I according to EN 15425 and EN 14080, Annex B.2

以下结构胶用于表面粘接、指接以及交叉层压木条的侧向连接:

-根据EN301标准的I型胶粘剂

-根据EN15425和EN14080标准，附录B.2规定的I型粘合剂。

The glue line thickness of the surface bonding meets the requirements of EN 16351.

表面粘接的胶线厚度符合EN16351的要求。

The surfaces preparations of the product (planed, grinded, brushed etc.) shall be given in the ETA.

产品的表面处理(刨光、磨削、刷光等)应在ETA中注明。

The application of wood preservatives and flame retardants is not subject of the European Assessment Document.

木材防腐剂和阻燃剂的使用不在欧洲评估文件范围内。

This EAD is not applicable when used wood is used.

当使用木材时，本EAD不适用。

The product is not fully covered by the following harmonised technical specification: EAD 130022-00-0304 2015-04 due to deviating intended use and shape

由于预期用途和形状的偏差，本产品未完全涵盖以下协调技术规范:EAD130022-00-0304 2015-04.

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

在产品包装、运输、储存、维护、更换和修理方面，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

由拼接交叉层压原木构件制成的预制木板单元ce认证法规-ETA认证

由拼接交叉层压原木构件制成的预制木板单元产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

由拼接交叉层压原木构件制成的预制木板单元ce认证模式

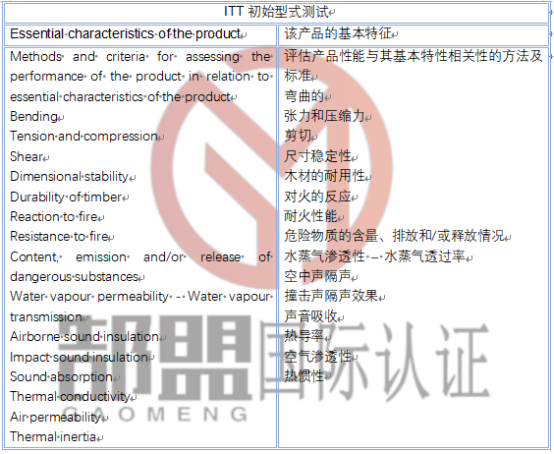

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
