EAD 130196-00-0304: 2018用于平铺结构用途的实心木板CE认证/ETA认证详解-上海郜盟

用于平铺结构用途的实心木板ce认证标准-ETA认证

EAD 130196-00-0304: 2018 SOLID WOOD BOARDS FOR FLATWISE STRUCTURAL USE WITH OVERLAPPING EDGE PROFILES 用于平铺结构用途的实心木板，带重叠边缘型材

The product "Solid wood boards for flatwise structural use with overlapping edge profiles" is a visual or machine graded timber with complementary edge profiles of coniferous species, Sweet Chestnut (Castanea sativa, Mil.) or Oak (Quercus petrea Liebl. and Quercus robur L.) where the length is greater than the other two dimensions. Examples of profiles are tongue and groove profiles or complementary rebates.

上海郜盟提示产品“用于平面结构用途的实木板，带有重叠边缘轮廓”是一种视觉或机械分级木材，其边缘轮廓为叶树种、甜栗 (Castanea sativa, Mill.) 或橡树 (Quercus petrea Liebl.和Querousrobur L.)的互补型轮廓，其中长度大于其他两个维度。此类轮廓的示例包括榫槽型轮廓或互补嵌槽。

The product is:

·visually graded in reliance on a grading rule

-that complies with EN 14081-1

-has provisions for the flatwise grading of the species cited above

-where one or more combinations of timber source, species and grade is assigned to a strength class in EN 19121,

该产品是:

·依据分级规则进行目视分级

-符合EN14081-1标准

-有对上述树种进行扁平分级的规定

-在EN19121中，一种或多种木材来源、树种和等级组合被分配给强度等级

or

machine graded with settings determined in accordance with EN 14081-2

·not treated with a fire retardant

·not preservative treated

·made exclusively of virgin wood, no recycled wood is used.

或

按EN14081-2标准确定设置的机械分级。

·未使用阻燃剂处理

·未使用防腐剂处理

·完全由原生木材制成，不使用再生木材。

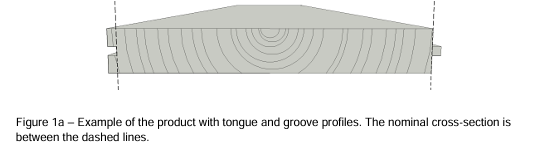

The minimum dimensions of the nominal cross section (see Figures 1a and 1b) of the solid product are:

·18 mm for thickness;

·80 mm for width.

实心产品的名义截面最小尺寸(见图1a和1b)为:

·厚度为18毫米;

·宽度为80毫米。

The product is not covered by a harmonised European Standard (hEN).

该产品不受统一欧洲标准(hEN)的覆盖。

Note:

·EN 13986 applies to panels/panel products. The product covered within the scope of this EAD is not a panel, it is individual boards.

·EN 14195 applies to non-structural products intended for use as cladding. The product covered within the scope of this EAD is graded for structural use which is not limited to cladding

注:

·EN13986适用于面板/板类产品。本EAD范围内的产品不是面板，而是单个电路板。

·EN14195适用于拟用作包覆层的非结构产品。本EAD范围内涵盖的产品为结构用途，

其等级不限于包覆层。

Concerning product packaging, transport, storage, maintenance, replacement and repair, it is the responsibility of the manufacturer to undertake the appropriate measures at the location where the product is fabricated and to provide guidance to its clients on the transport, storage, maintenance, replacement and repair of the product as necessary to ensure that the performance of the product is maintained.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任在产品制造地点采取相应的措施，并视需要向其客户提供有关产品运输、储存、维护、更换及修理方面的指导，以确保产品的性能得以保持。

It is assumed that the product will be installed according to the manufacturer's instructions.

假设产品将按照制造商的说明进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



用于平铺结构用途的实心木板ce认证法规-ETA认证

用于平铺结构用途的实心木板产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



用于平铺结构用途的实心木板ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。







用于平铺结构用途的实心木板ce认证测试哪些项目

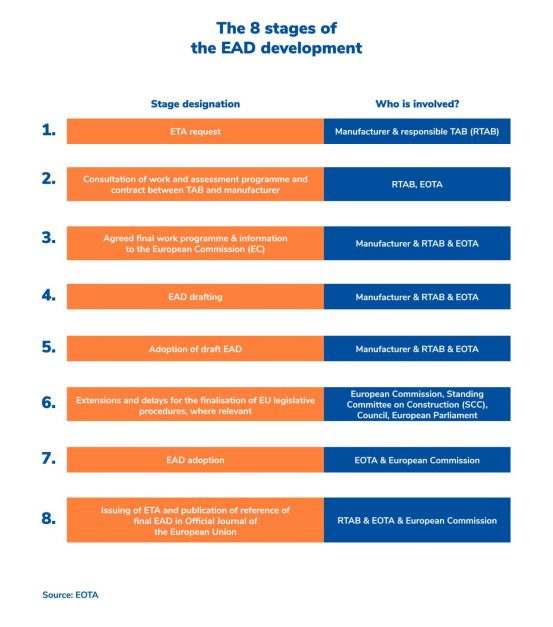

EAD认证流程







用于平铺结构用途的实心木板ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

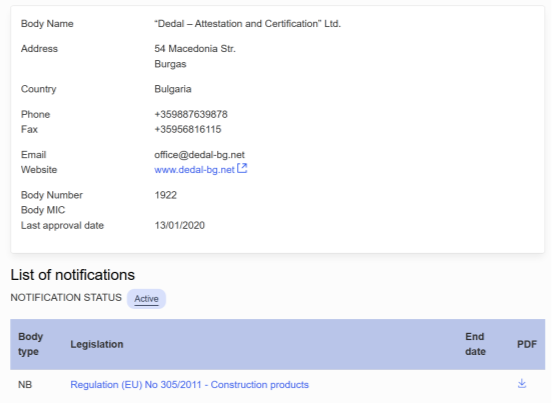

NB1922欧盟官网资质：
