EAD 130197-00-0304: 2017 GLUED LAMINATED TIMBER MADE OF STEAM-CURED SOLID TIMBER WITH RECTANGULAR CROSS SECTION-SOFTWOOD 由蒸汽养护实心木材制成的矩形截面胶合板——软木

The product, "Glued laminated timber made of steam-cured solid timber with rectangular cross section -softwood", is composed of lamellae according to EAD 130166-00-0304. The cross section is identical to standardized glued laminated timber made of softwood laminations according to EN 14080.

上海郜盟提示该产品名为“用硬化硬木制成的胶合板木材，截面为矩形一一软木制”，由符合EAD130166-00-0304标准的单板组成。其截面与根据EN14080标准制成的由软木单板构成的标准化胶合板木材完全一致。

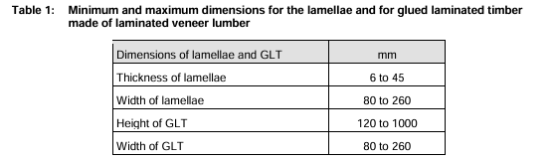

The dimensions for the lamellae and glued laminated timber are given in Table 1.

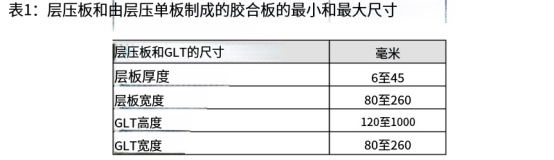

层压板和胶合木的尺寸见表1。

Wood species is European spruce, fir and larch.

木材种类为欧洲云杉、冷杉和落叶松。

The following structural adhesives are used for finger joints as well as surface gluing:

-Adhesives type I according to EN 301

-Adhesives type I according to EN 15425 and EN 14080, Annex B.2.

以下结构胶用于指接缝以及表面粘合:

-根据EN301标准的I型粘合剂

-根据EN15425和EN14080标准，附录B.2的I型粘合剂。

The product is not fully covered by the following harmonised technical specifications:

-hEN 14080 2013-06 due to steam-cured lamellae

-EAD 130166-00-0304 2016-08 due to deviating product type

该产品未完全涵盖以下协调技术规范:

-EN140802013-06，因蒸汽固化层压板

-EAD130166-00-03042016-08因产品类型不符而适用

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

在产品包装、运输、储存、维护、更换和修理方面，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细列出。



What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。



由蒸汽养护实心木材制成的矩形截面胶合板——软木ce认证法规-ETA认证

由蒸汽养护实心木材制成的矩形截面胶合板——软木产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】



由蒸汽养护实心木材制成的矩形截面胶合板——软木ce认证模式

TAB机构测试+ETA认证， 由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
	Further testing of samples taken at the factory工厂取样的进一步检验
Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。







由蒸汽养护实心木材制成的矩形截面胶合板——软木ce认证测试哪些项目

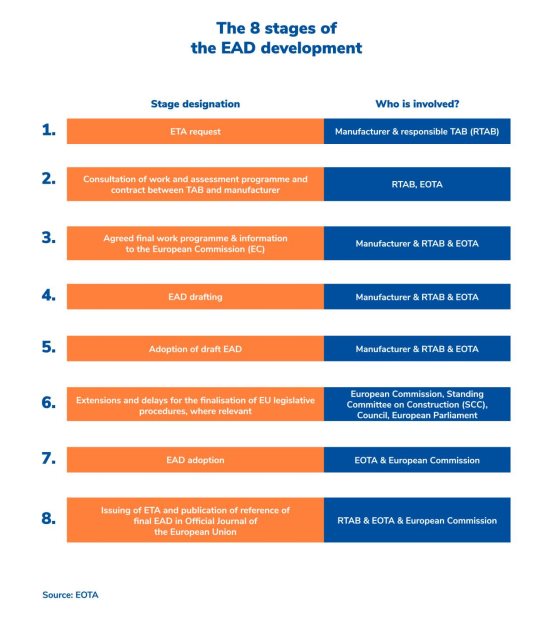

EAD认证流程







由蒸汽养护实心木材制成的矩形截面胶合板——软木ce认证机构

公告号机构NB1922,拥有欧盟全品类建材产品授权，上海郜盟拥有该机构直接授权，上海办公室审核员可直接代表机构进行工厂审核，大大减少工厂的差旅成本和时间成本

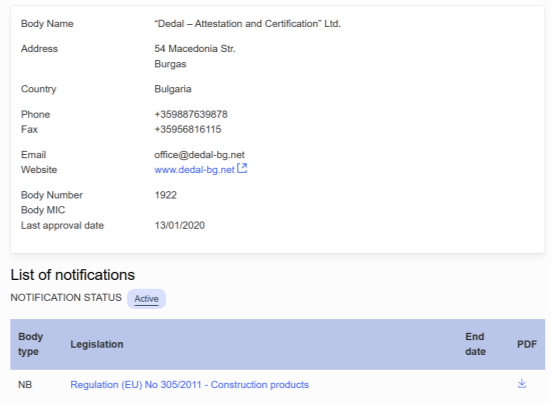

NB1922欧盟官网资质：



上海郜盟，专业CE认证服务，丰富的行业经验以及专业的工程师可帮助中国工厂快速通过合规评定，取得CE证书！！



---
