用于木结构的型材铝钉ce认证标准-ETA认证

EAD 130287-00-0603: 2017

PROFILED ALUMINIUM NAIL FOR USE IN TIMBER STRUCTURES

用于木结构的型材铝钉

692e6311-d9d3-4dac-bc3c-8181e2c0f1af

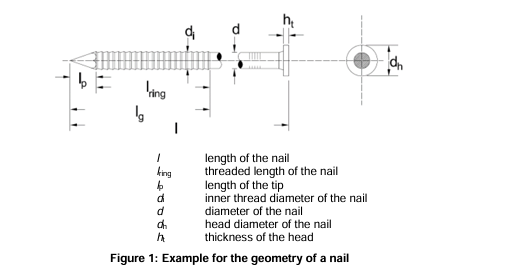

The product, "Profiled aluminium nail for use in timber structures", is a specific nail made of aluminium EN AW-5019 according to EN 573-31, The minimum tensile strength of the wire is 410 N/mm2, The geometry fulfills the requirements of EN 14592, see Figure 1. The fastener is produced in diameters from 2.5 mm to 4.2 mm. The minimum length of the profiled aluminium nails is 45 mm, the maximum length is 70 mm.

上海郜盟提示该产品名为“用于木结构中的成型铝钉”，是一种特定类型的铝钉，由ENAW-5019铝材制成，符合EN573-31标准的要求。该线材的最低抗拉强度为410 N/mm2。其几何形状符合EN14592的要求，详见图1。这种紧固件的生产直径范围为2.5mm至4.2mm。成型铝钉的最小长度为45mm，最大长度为70mm。

The product is not fully covered by the following harmonised technical specifications:

-hEN 14592 2012-05 due to deviating material

该产品未完全涵盖以下协调技术规范:

-HEN145922012-05因材料偏差导致的不适用性

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

在产品包装、运输、储存、维护、更换和修理方面，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

假设产品将按照制造商的说明进行安装，或(在没有此类说明的情况下)按照建筑专业人士的常规做法进行安装。

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在ETA中详细阐述

What is an EAD?什么是EAD？

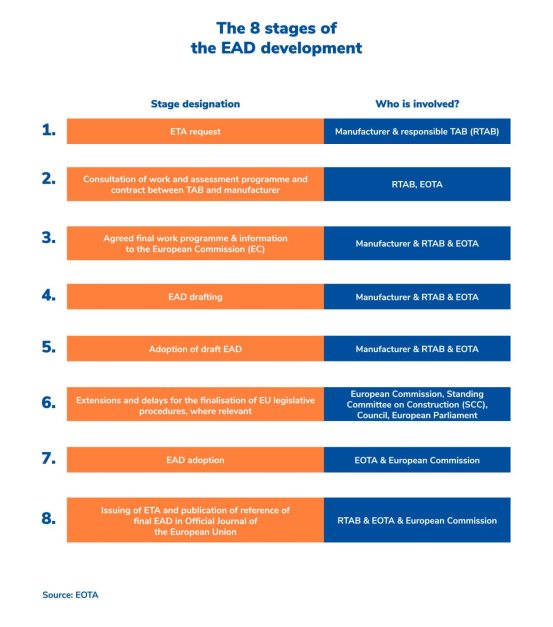

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

用于木结构的型材铝钉ce认证法规-ETA认证

用于木结构的型材铝钉产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

用于木结构的型材铝钉ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

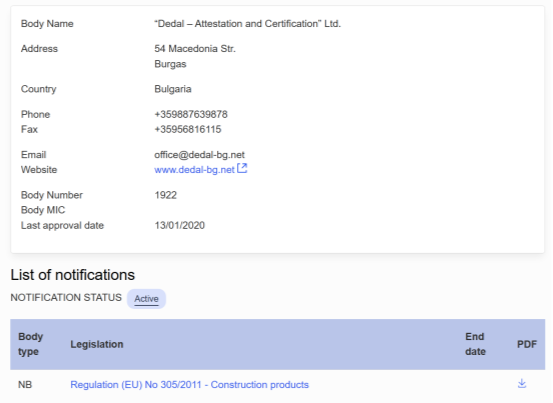

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
