从报废轮胎中回收的钢纤维ce认证标准-ETA认证

EAD 260010-00-0301: 2019

Fibres for concrete - steel fibres recovered from end-of-life tyres

混凝土用纤维——从报废轮胎中回收的钢纤维

1ea39b4d-bde3-47f9-9f51-b5766e44bd88

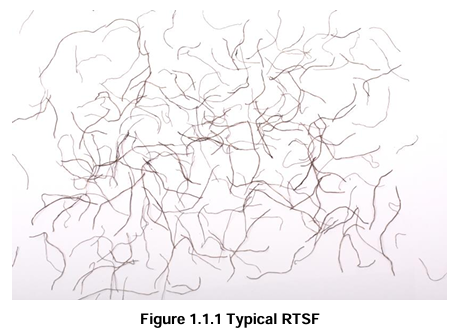

This EAD specifies assessment methods for fibres for concrete made from steel fibres recovered from end-of -life tyres (abridged here as RTSF: "Reused Tyre Steel Fibres"). The basic material is cold-drawn wire used in the manufacturing of tyre steel cords. Typical RTSF is shown in Figure 1.1.1.

上海郜盟提示本EAD规定了由报废轮胎回收的钢纤维(此处简称为RTSF:“再利用轮胎钢纤维”)用于混凝土的评估方法。基础材料是用于制造轮胎钢丝帘线的冷拉钢丝。典型的RTSF如图1.1.1所示。

The geometrical characteristics (developed lengths and diameter) of RTSF shall be expressed in the form of statistical distributions (examples of the expression of such distributions are given in Figure 1.1.2). While the assessment method regarding the determination of the tensile strength of fibres requires the developed length of a specimen to be at least 20 mm, the statistical distribution of the developed length of the product implies a fraction of fibres of greater length suitable for testing. The developed lengths could be up to100 mm. The diameter ranges from 0,1 mm to 0,4 mm or even above this diameter (more than 0,4 mm).The EAD is applicable to RTSF irrespective of the developed length and diameter of the fibres. The product may contain vulcanised rubber. This EAD is applicable for RTSF with rubber contents below 10% by mass.

RTSF的几何特性(展开长度和直径)应以统计分布的形式表示(此类分布的表达示例见图1.1.

2)。虽然关于测定纤维拉伸强度的评估方法要求试样展开长度至少为20毫米，但产品展开长度的统计分布意味着有一部分长度更长的纤维适合进行试验。展开长度可达100毫米。直径范围从0.1毫米到0.4毫米，甚至超过此直径(大于0.4毫米)。EAD适用于RTSF，无论纤维的延伸长度和直径如何。该产品可能含有硫化橡胶。本EAD适用于橡胶含量按质量计低于10%的RTSF

The product is not fully covered by the following harmonised technical specification: EN 14889-11, as this standard does not comprise provisions for a recycled steel fibre group. In particular, the following characteristics cannot be determined according to the method foreseen in EN 14889-1:

·tensile strength of fibres: taking into account the geometrical properties of the RTSF, the size and mounting of the specimens requires additional specifications to the reference test method foreseen in EN 14889-1;

·modulus of elasticity of fibres: taking into account that the modulus of elasticity is to be given for the basic material before deformation and that, due to the origin of RTSF, the basic material prior to the deformation of the fibres is not available, the modulus of elasticity of the fibres cannot be determined (similarly to Group III, IV and V of EN 14889-1, see clause 5.4).

该产品未完全涵盖于以下统一技术规范：EN 14889-11，因为该标准不包含再生钢纤维组的相关规定。特别是，以下特性无法根据EN 14889-1中规定的方法进行测定：

·纤维的拉伸强度：考虑到RTSF的几何特性，试样的尺寸和安装需要对EN 14889-1中规定的参考测试方法进行补充规定；

·纤维的弹性模量：考虑到弹性模量应针对变形前的基础材料给出，且由于RTSF的来源，纤维变形前的基础材料无法获得，因此无法确定纤维的弹性模量（类似于EN 14889-1中的第III、IV和V组，见第5.4条）。

Concerning product packaging, transport, storage, maintenance, replacement and repair it is the responsibility of the manufacturer to undertake the appropriate measures and to advise his clients on the transport, storage, maintenance, replacement and repair of the product as he considers necessary.

关于产品的包装、运输、储存、维护、更换和维修，制造商有责任采取适当措施，并就其认为必要的产品运输、储存、维护、更换和维修事宜向客户提供建议。

It is assumed that the product will be installed according to the manufacturer's instructions or (in absence of such instructions) according to the usual practice of the building professionals.

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document shall be considered for the determination of the performance and detailed in the ETA.

相关制造商的规定对本欧洲评估文件所涵盖产品的性能具有影响，应在确定性能时予以考虑，并在ETA中详细说明。

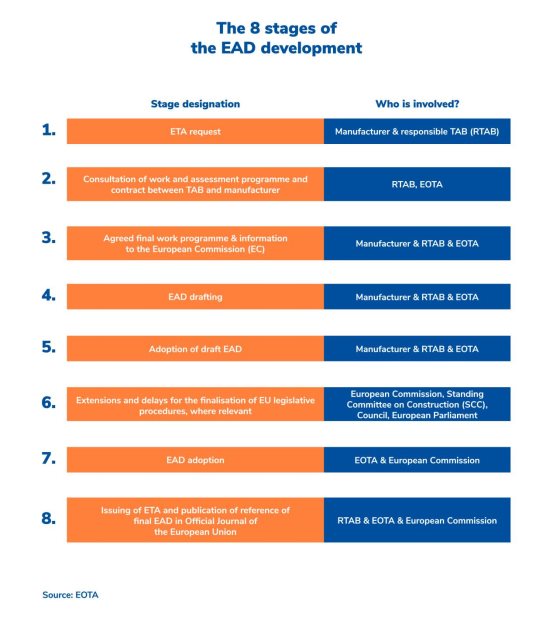

What is an EAD?什么是EAD？

A European Assessment Document, or EAD for short, is a harmonised technical specification developed by EOTA as the basis for European Technical Assessments (ETAs).上海郜盟提示欧洲评估文件（简称EAD）是由欧洲技术认证组织（EOTA）制定的统一技术规范，作为欧洲技术评估（ETA）的基础。

In combination with the ETA, the EAD provides manufacturers with a way to CE marking for construction products that are not or not fully covered by a harmonised European standard (hEN) under the Construction Products Regulation (EU) 305/2011. The CE marking allows the manufacturer to freely market his product in the entire European Economic Area as well as in Switzerland and Turkey.

结合ETA，EAD为制造商提供了一种对未被或未完全被《建筑产品法规》（EU）305/2011所涵盖的协调欧洲标准（hEN）覆盖的建筑产品进行CE标志认证的途径。获得CE标志后，制造商即可在全部欧洲经济区以及瑞士和土耳其自由销售其产品。

Finished floor or ceiling covering as well as possible sound reducing materials are not part of the kit.

完成的地板或天花板覆盖物以及可能的隔音材料不属于套件的一部分。

This EAD is not applicable when

-timber treatments (preservatives, fire and flame retardants) are used, and/or

-recycled material is used.

此 EAD 在下列情况下不适用:

-木材处理工艺（防腐剂、防火阻燃剂）被应用于其中，且/或

-使用了回收材料。

关于产品的包装、运输、储存、维护、更换和修理事宜，制造商有责任采取相应措施，并在其认为必要的情况下向客户提供有关产品运输、储存、维护、更换及修理方面的建议。

It is assumed that the product will be installed according to the manufacturer's product installation instructions (MPl) or (in absence of such instructions) according to the usual practice of the building professionals

假定该产品将按照制造商的产品安装说明（MPl）进行安装，或者在无此类说明的情况下，则按照建筑专业人员的惯常做法进行安装

Relevant manufacturer's stipulations having influence on the performance of the product covered by this European Assessment Document, shall be considered for the determination of the performance and detailed in the ETA.

对于本欧洲评估文件所涵盖产品的性能判定，应考虑相关制造商的规定，这些规定会对产品性能产生影响，相关内容将在 ETA 中予以详细阐述。

从报废轮胎中回收的钢纤维ce认证法规-ETA认证

从报废轮胎中回收的钢纤维产品出口欧盟需要满足CPR建材法规要求：

Regulation (EU) No 305/2011, Directive 89/106/EEC (CPD)【旧版】

从报废轮胎中回收的钢纤维ce认证模式

TAB机构测试+ETA认证，由欧盟公告机构进行工厂审核后发证

制造商职责：	Factory production control (FPC)工厂生产控制;
制造商职责：	Further testing of samples taken at the factory工厂取样的进一步检验

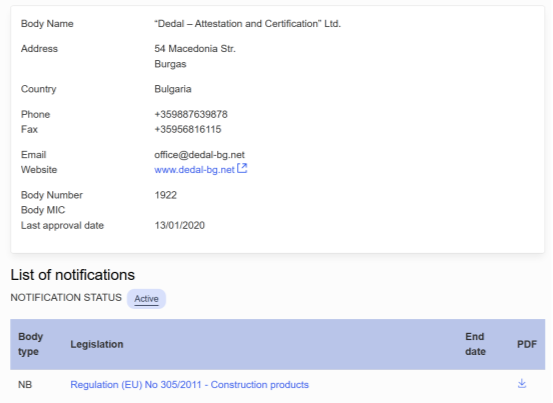

Notified Body 公告机构职责：	Initial inspection of factory and FPC 工厂和FPC的初始检查;
Notified Body 公告机构职责：	Continuous surveillance, assessment and approval of F.P.C. 持续监视、评估和批准F.P.C.
Technical Assessment Bodies (TABs) TAB机构职责	European Technical Assessments (ETAs) are issued by Technical Assessment Bodies (TABs) designated for the relevant product area by the EU Member and Partner States in accordance with the Construction Products Regulation (EU) No 305/2011.欧洲技术评估（eta）由欧盟成员国和伙伴国根据建筑产品法规（EU） No 305/2011为相关产品领域指定的技术评估机构（TABs）发布。
